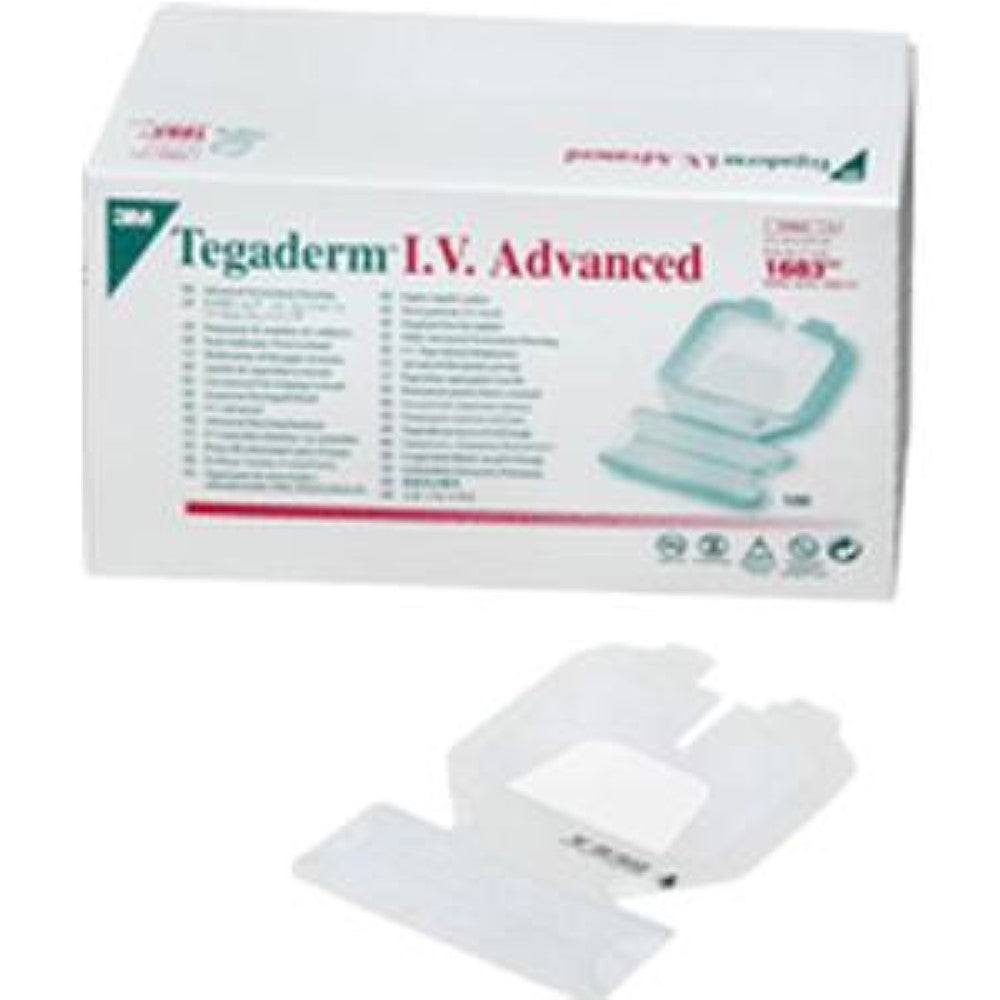

3M Tegaderm I.V. Advanced Securement Dressing
PRODUCT DETAILS
The 3M Tegaderm I.V. Advanced Securement Dressing is a transparent film dressing for advanced securement and stabilization of I.V. and central line catheters. A flexible stabilization border keeps the edges down, and the dual pattern-coated adhesive builds securement strength over 24 hours while the breathable film manages moisture at the site. The waterproof film keeps the insertion site continuously visible, and the dressing can be worn for up to seven days, until soiled or no longer intact.
Key Features and Benefits
- Sterile, single-use film; not made with natural rubber latex.
- In vitro testing shows the film provides a viral barrier to viruses 27 nm in diameter or larger while the dressing remains intact without leakage.
- Stabilization border that is flexible and conformable, designed to reduce edge lift.
- Keyhole-shaped notch that conforms around the catheter hub and lumen to reduce manipulation and dislodgement.
- Picture-frame delivery for precise placement, with a film that resists sticking to gloves or to itself for one-handed application.
- Securement tape strips with a film coating that resists soiling, helping reduce the number of dressing changes.
- Dual pattern-coated adhesive that balances securement and removal to help preserve skin integrity.
Sizing and Catheter Selection
The 1683 size, 2 1/2 in x 2 3/4 in (6.5 cm x 7 cm), is suggested for short peripheral I.V. catheters, and the 1685, 3 1/2 in x 4 1/2 in (8.5 cm x 11.5 cm), and 1688, 4 in x 4 3/4 in (10 cm x 12 cm), sizes for central venous catheters and PICC lines. The line also covers midline, dialysis, arterial and epidural catheters and other percutaneous devices. The dressing is classified under FDA 21 CFR 880.5210 as an intravascular catheter securement device and meets the CDC and INS definitions of a catheter securement or stabilization device.
3M Tegaderm I.V. Advanced Securement Dressing Chart
| MPN | Overall Dressing Size | Sold Unit |
|---|---|---|
| 1683 | 2 1/2 in x 2 3/4 in (6.5 cm x 7 cm) | Box of 100 dressings |
| 1685 | 3 1/2 in x 4 1/2 in (8.5 cm x 11.5 cm) | One dressing, or a box of 50 dressings |
| 1688 | 4 in x 4 3/4 in (10 cm x 12 cm) | One dressing, or a box of 50 dressings |
Application and Care
Prepare the site per facility protocol and allow all preps and protectants to dry completely before applying. Do not stretch the dressing at placement; apply firm, gentle pressure over the film and smooth it into the skin. Choose a size that leaves at least a one-inch margin of adherence on dry, healthy skin around the catheter site; clipping hair at the site may improve adhesion, and shaving is not recommended. 3M Cavilon No Sting Barrier Film may be applied to the skin, avoiding the area immediately surrounding the insertion site. Observe the site daily for signs of infection or other complications; if infection is suspected, remove the dressing, inspect the catheter site directly, and determine appropriate medical intervention. Change the dressing at least every seven days, or sooner if it becomes loose, soiled or damp, or as directed by facility protocol. Remove it with a low and slow technique, peeling the film back toward the catheter insertion site rather than pulling it up from the skin.
